| Electrical Specification (STC*) | |||||||||
| Maximum Power | Pmax(W) | 370 | 375 | 380 | 385 | 390 | 395 | 400 | 405 |
| Maximum Power Voltage | Vmp(V） | 38.51 | 38.87 | 39.22 | 39.57 | 39.92 | 40.27 | 40.61 | 40.96 |
| Maximum Power Current | lmp(A） | 9.61 | 9.65 | 9.69 | 9.73 | 9.77 | 9.81 | 9.85 | 9.89 |
| Open Circuit Voltage | Voc(V） | 47.13 | 47.43 | 47.73 | 48.03 | 48.33 | 48.63 | 48.93 | 49.23 |
| Short Circuit Current | lsc(A） | 10.16 | 10.19 | W.22 | 10.25 | 10.29 | 10.33 | 10.36 | 10.39 |
| Module Efficiency | （%） | 18.4 | 18.7 | 18.9 | 19.2 | 19.4 | 19.7 | 19.9 | 20.1 |
| Power Output Tolerance | (W） | 0-+5 |
| Mechanical Data | |
| Number of Cells | 144 Cells (6×24) |

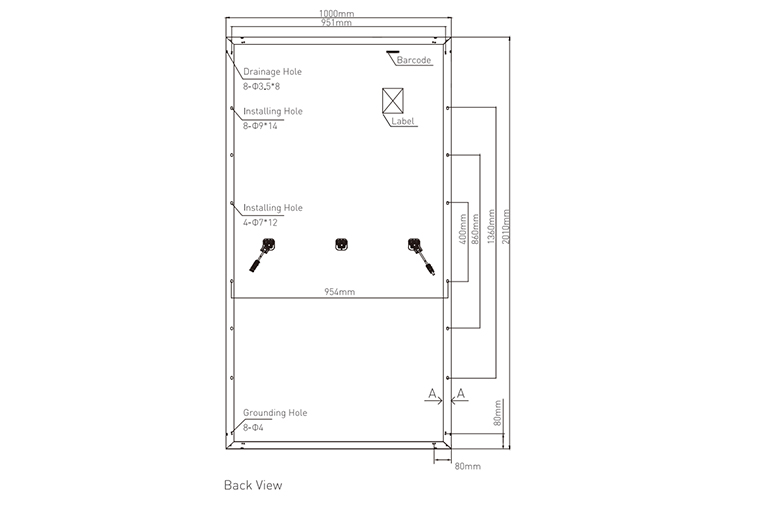

| Dimensions of Module L*W*H (mm) | 2010x1000x35mm (79.13×39.37×1.38 inches] |
| Weight [kg] | 23.1 kg |
| Glass | High transparency solar glass 3.2mm [0.13 inches] |
| Backsheet | White |
| Frame | Silver, anodized aluminium alloy |
| J-Box | IP68 Rated |
| Cable | 4.0mm2 [0.006 inches2), 300mm (11.8 inches] |
| Number of diodes | 3 |
| Wind/ Snow Load | 2400Pa/5400Pa* |
| Connector | MC Compatible |
